Mud 250 Micron Test Sieve

Thursday September-18 2025  18:03:10

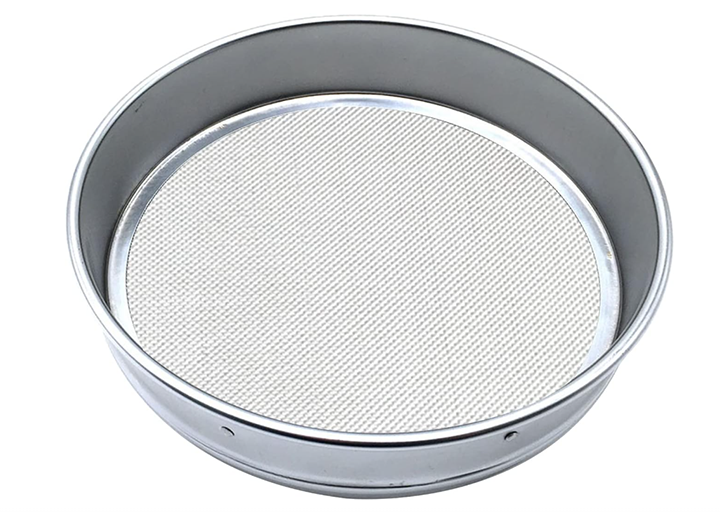

What is the Mud 250 Micron Test Sieve?

Mud 250 Micron Test Sieve is a standard tool for measuring the particle size of solids in drilling mud, using a 250-micron sieve.Mud is a suspended mixture of water, clay, chemical additives, and drill cuttings, characterized by viscosity, adjustable density, and debris-carrying capacity.

This sieve removes coarse drill cuttings larger than 250 microns, such as sand and rock cuttings. Excessive coarse particles in the mud can increase drilling fluid viscosity and density, wear drilling equipment, affect mud cake quality, and lead to wellbore instability. Screening can control the particle size of mud solids within a reasonable range, ensuring drilling efficiency and operation safety, while also providing data for adjusting mud properties.

Advantages of the Mud 250 Micron Test Sieve

The Mud 250 Micron Test Sieve effectively separates solid particles from liquid components in mud, improving screening efficiency and accuracy. It is particularly suitable for solids control in oil drilling and helps reduce drill bit wear. The screen mesh typically features an anti-stick design, reducing clogging of the mesh by wet mud particles, thereby extending the life of the screen. Furthermore, this screen is often used in conjunction with a vibrating screen. High-frequency vibration enhances mud fluidity, allowing fine particles to pass through the screen more easily, improving screening consistency and repeatability.

Specifications of the Mud 250 Micron Test Sieve

The Mud 250 Micron Test Sieve corresponds to a 50-mesh mesh, with a mesh size of 250 μm. To verify the micron size of the sieve, use specialized equipment or refer to a standard mesh-to-micron conversion chart. A 200-mesh sieve has a mesh size of approximately 74 μm (according to ASTM standards).

1 μm is approximately equal to 12,500 mesh, and 20 μm is approximately equal to 625 mesh. The pore size of a 40-mesh sieve is 400 μm, so 100 μm is finer than 400 μm. Generally speaking, a larger mesh number or smaller micron value indicates a finer sieve.

What materials does the Mud 250 Micron Test Sieve screen?

In addition to slurry screening, the Mud 250 Micron Test Sieve can also be used for fine screening of a variety of materials: In the construction industry, it screens quartz sand and talc in concrete additives to remove excessive coarse particles and ensure uniformity. In the mining industry, it screens fine-grained ore powders in mineral processing, separating impurity particles larger than 250 microns to improve ore purity. In the environmental protection field, it separates coarse residue from fine sludge after industrial wastewater treatment for subsequent dehydration or resource recovery. In the food processing industry, it screens powders such as flour and starch to remove excessive particles such as bran and lumps to ensure raw material purity.

Mud 250 Micron Test Sieve Structure

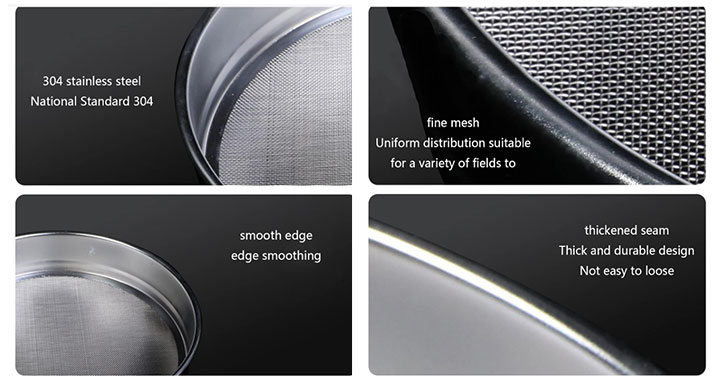

The Mud 250 Micron Test Sieve can stack sieves of varying apertures to achieve multi-stage screening. The sieve frame and base are tightly sealed to prevent mud leakage. A vibration damper is installed on the bottom to effectively reduce vibration noise and equipment wear, extending service life. The sieves are available in 304 stainless steel or high-manganese steel. 304 stainless steel is corrosion-resistant and wear-resistant, adapting to the complex chemical environment of mud. High-manganese steel offers high hardness and strong impact resistance, enabling it to withstand the friction of coarse particles. The sieve frame is constructed of high-strength aluminum alloy or carbon steel, making it lightweight and easy to transport while providing sufficient structural strength to prevent deformation caused by long-term vibration.

The Mud 250 Micron Test Sieve not only meets the needs of mud screening, but also ensures mud performance with its precision, efficiency, and adaptability. It can also be expanded to various fields such as construction, mining, and environmental protection. Its high-quality materials and scientific structure provide durability, making it a valuable tool for fine particle classification and impurity separation in industrial production, providing strong support for improving material handling quality and efficiency in various industries. Our factory has many years of manufacturing experience and has equipment of different sizes such as 5μm, 20μm, 50μm and 150μm to choose from. It is the preferred choice of many companies.
