Nylon sieve shaker mesh is a mesh filter or separation material woven from nylon (polyamide) material. Due to the flexibility, elasticity, wear resistance, chemical corrosion resistance and smooth surface of nylon itself, nylon screens are widely used in various fields that require filtering, separation and screening.

Features of nylon sieve shaker mesh

High strength and stability: Nylon mesh is woven with monofilament, with a smooth surface, high strength, and not easy to deform due to pressure changes.

Corrosion resistance: Suitable for filtering corrosive liquids or handling corrosive materials.

Easy to clean: The smooth surface is easy to clean and can be used multiple times to reduce costs.

Accuracy range: The mesh accuracy is usually between 20 mesh and 800 mesh (aperture is about 15μm to 840μm), which can be customized according to needs.

Non-toxic and harmless: Some nylon meshes meet FDA standards and are suitable for food, pharmaceutical and other industries.

Classification of nylon sieve shaker mesh

Single-layer nylon screen: simple structure, the wire material is mostly nylon palm fiber, with good ventilation, light transmission and air permeability, often used in some occasions where the filtering accuracy is not particularly high, or where rapid filtering and ventilation are required, such as simple ventilation window screens, ordinary agricultural insect-proof nets, etc.

Three-layer nylon screen: It is composed of two layers of large mesh outer clothes and one layer of small mesh inner clothes. This structure makes the screen have better strength and stability while having a certain filtering accuracy. It can be used in scenes with high requirements for filtering effect and protective performance, such as some industrial filtration, protective nets in aquaculture, etc.

Technical parameters of nylon sieve shake

Parameter name	Parameter range	Description
Screen size	0.5m²-5m²	Select the screen size according to the processing capacity.
Screen aperture	0.1mm-50mm	Select the screen aperture according to the material particle size.
Vibration frequency	900-1500 times/minute	The higher the frequency, the higher the screening efficiency.
Amplitude	2-8mm	The larger the amplitude, the higher the processing capacity; the smaller the amplitude, the higher the screening accuracy.
Processing capacity	1-50 tons/hour	Determined according to material characteristics and screening requirements.
Motor power	0.75-7.5kW	Select according to equipment size and load.
Equipment weight	200-2000kg	Nylon material is light in weight, and the overall weight of the equipment is relatively light.
Material selection	Screen box: carbon steel/stainless steel; Screen: nylon	Nylon screen is wear-resistant and corrosion-resistant, suitable for a variety of materials.

Recommended mesh counts for nylon screen

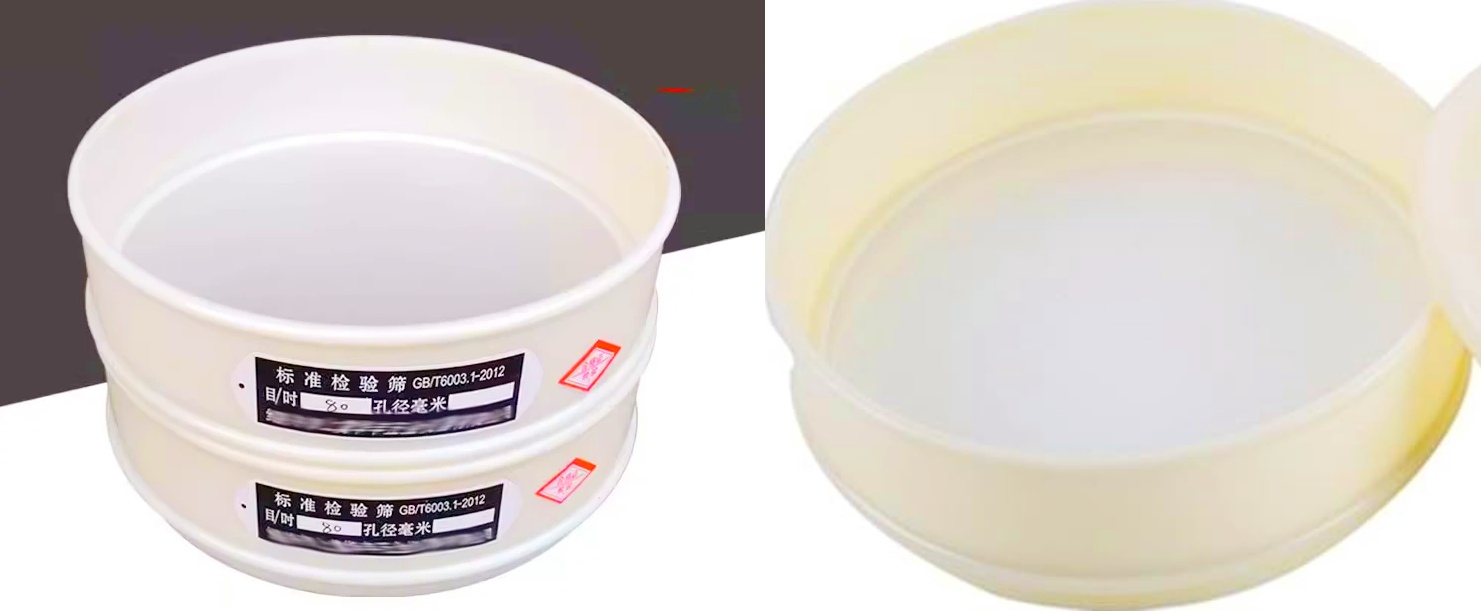

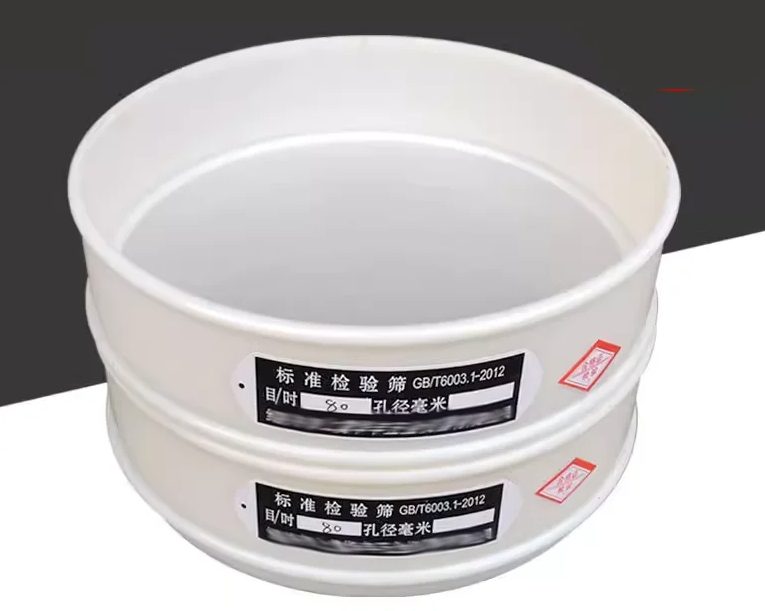

Standard sieve Φ75mm	6 mesh, 3.2mm	60
	8 mesh, 2.5mm	60
	10 mesh, 2.0mm	60
	12 mesh, 1.66mm	50
	14 mesh, 1.43mm	40
	16 mesh, 1.25mm	35
	18 mesh, 1.00mm	35
	20 mesh, 0.90mm	35
	24 mesh, 0.85mm	35
	30 mesh, 0.60mm	35
	36 mesh, 0.50mm	35
	40 mesh, 0.45mm	35
	50 mesh, 0.355mm	35
	60 mesh, 0.30mm	35
	70 mesh, 0.25mm	35
	80 mesh, 0.224mm	35
	100 mesh, 0.16mm	35	Ministry standard: 0.15mm
	120 mesh, 0.125mm	35
	140 mesh, 0.12mm	35
	150 mesh, 1.05mm	35
	160 mesh, 0.10mm	35
	180 mesh, 0.09mm	35
	190 mesh, 0.08mm	35
	200 mesh, 0.075mm	35	Ministry standard: 0.074mm
	220 mesh, 0.07mm	35
	250 mesh, 0.063mm	38	Ministry standard: 0.061mm
	260 mesh, 0.060mm	38
Standard sieve with punch frame Φ75mm	300 mesh, 0.050mm	38	Ministry standard: 0.050mm
	320 mesh, 0.050mm	38	Ministry standard: 0.045mm
	325 mesh, 0.045mm	40
	360 mesh, 0.040mm	45
	400 mesh, 0.038mm	60
	500 mesh, 0.0308mm	80
	600 mesh, 0.026mm	150
	800 mesh, 0.020mm	150
	1000 mesh, 0.015mm	160
	1250 mesh, 0.010mm	180

Suggestions for purchasing nylon screens

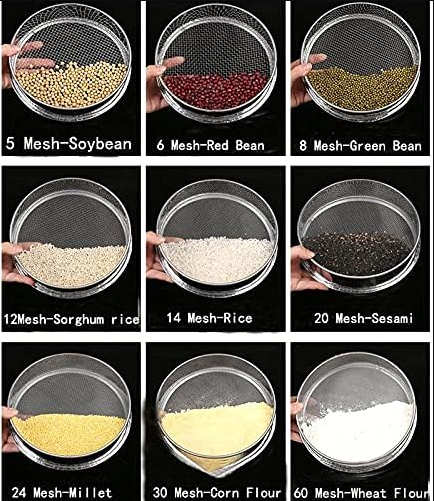

Choose mesh counts according to the purpose: low mesh counts for coarse screening (such as 20-60 meshes), high mesh counts for fine filtration (100-400 meshes).

Note the material segmentation: nylon 6 (ordinary), nylon 66 (higher strength and temperature resistance).

Special needs: when anti-static, antibacterial or food-grade certification (such as FDA standards) is required, it must be clearly stated.

Nylon screen manufacturers



Nylon screens, with prices ranging from a few yuan to dozens of yuan, are suitable for laboratory, home or industrial use. Dahan Machinery provides customized services and bulk supply. We support non-standard customization and provide email contact.

If you have specific needs (such as aperture, purpose or customization requirements), you can provide more details and I can help you recommend more precise specifications!
