Nylon sieve shaker

What is a nylon sieve shaker?

Nylon sieve shaker is a kind of vibrating screening equipment that uses nylon material as the screen or key component. It mainly uses the exciting force generated by the vibrating motor to make the material jump on the nylon screen, thereby achieving the separation of materials of different particle sizes. Nylon material has the advantages of wear resistance, corrosion resistance, and light weight, making nylon vibrating screen widely used in chemical, food, medicine, mining and other industries.

Nylon sieve shaker video

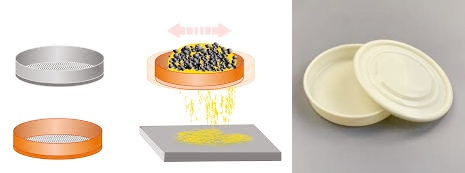

How does the nylon sieve shaker work?

Nylon sieve shaker uses the exciting force generated by the vibrating motor to make the screen box vibrate. The material jumps on the nylon screen, and the material smaller than the size of the screen hole passes through the screen and falls to the lower layer, while the material larger than the size of the screen hole remains on the screen, thus achieving material classification.

Application scope of nylon sieve shaker

1. Corrosion-resistant application: When processing corrosive chemical raw materials or intermediates, nylon sieve shaker can effectively resist the erosion of chemical substances such as acids and alkalis, and extend the service life of the equipment.

2. Lightweight and highly elastic application: The elasticity of nylon screen helps to reduce the blockage of the screen holes and improve the screening efficiency of fine powders. In the pharmaceutical, food and other industries, nylon sieve shaker can provide a more stable screening effect.

3. Special material processing: Although nylon itself is also prone to static electricity, compared with metal screens, nylon sieve shakers can reduce static interference in the screening of certain static-sensitive materials.

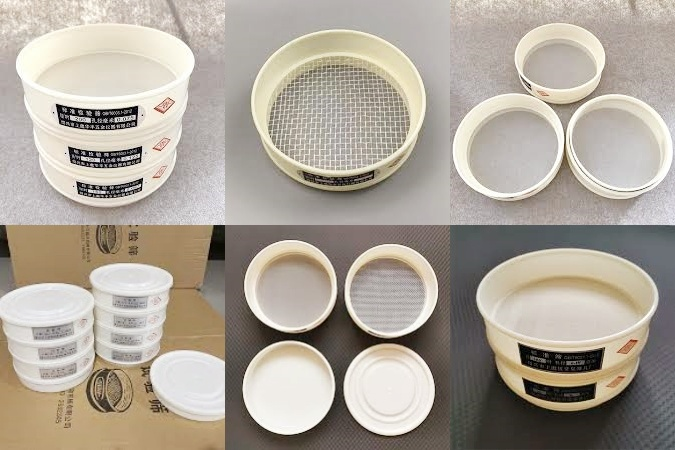

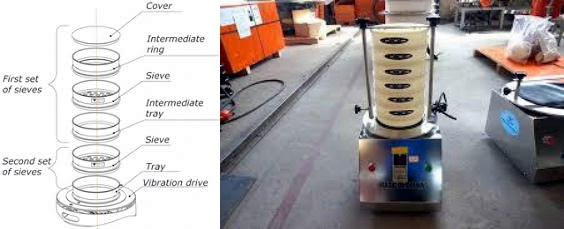

Structure of nylon sieve shaker

Nylon sieve shaker is mainly composed of vibration motor, screen box, nylon screen, support device, vibration damping spring, etc. The screen box carries the screen and materials, usually made of carbon steel or stainless steel. Nylon screen is the core component for screening materials, with the characteristics of wear resistance, corrosion resistance, and anti-blocking.

What is the disadvantage of nylon sieve shaker?

1. Poor high temperature resistance: Nylon material has poor high temperature resistance compared to metal material, and may soften and deform in high temperature environment, which limits its application range. The strength of nylon sieve shaker is relatively low, and it is not suitable for screening heavy materials or materials with sharp edges.

2. Limited scope of application: Nylon sieve shaker may not be suitable for some granular materials with special shapes or special properties. Although nylon is corrosion-resistant, it is not resistant to strong acids and oxidants, so it will be limited in the screening of some special chemical materials.

3. Insufficient solvent resistance: For some organic solvents, nylon screen may be dissolved, swollen or chemically reacted, resulting in damage to the screen. In the chemical industry, if materials containing organic solvents need to be screened, the use of nylon vibrating screen needs to be carefully evaluated.

4. Limited vibration amplitude: Compared with metal vibrating screens, the vibration amplitude of nylon sieve shakers may be limited by the material itself, affecting the screening effect of some special granular materials.

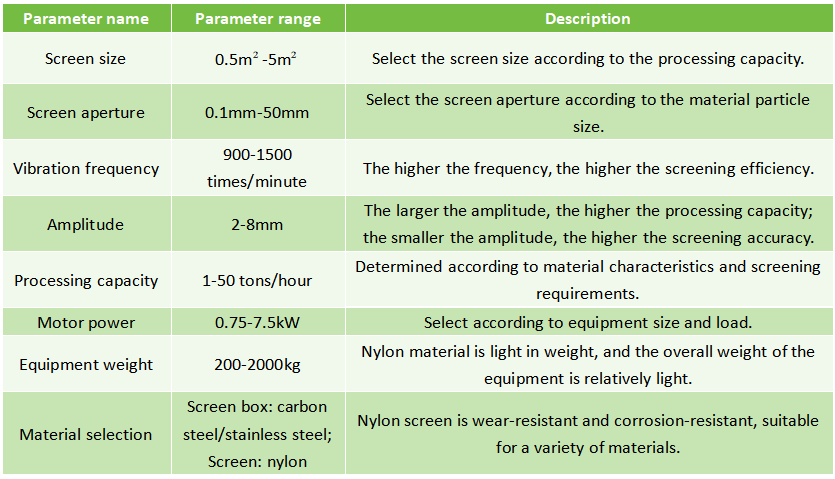

Technical parameters of nylon sieve shaker

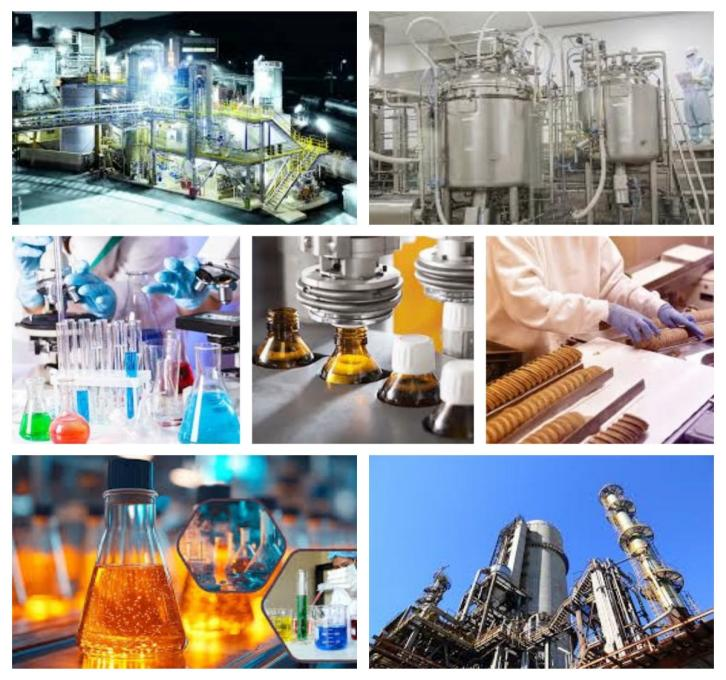

What is nylon sieve shaker used for?

Nylon sieve shaker has a wide range of applications in the chemical, food, pharmaceutical, building materials and other industries. It is particularly suitable for the screening and grading of granular materials that have high requirements for wear resistance and corrosion resistance and require easy cleaning and maintenance.

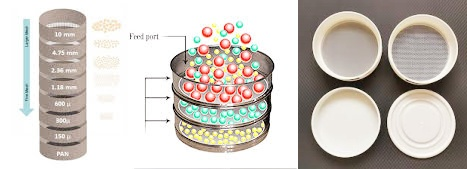

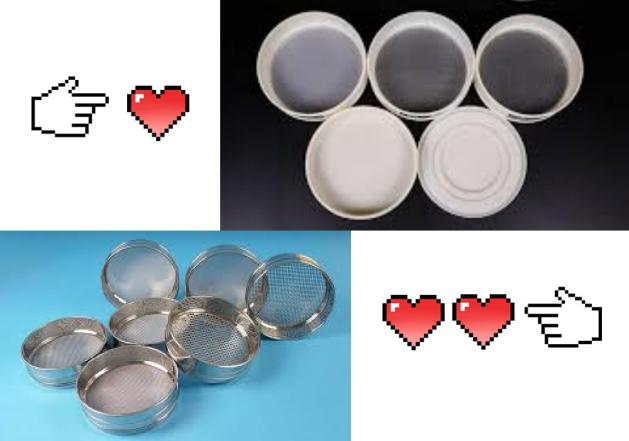

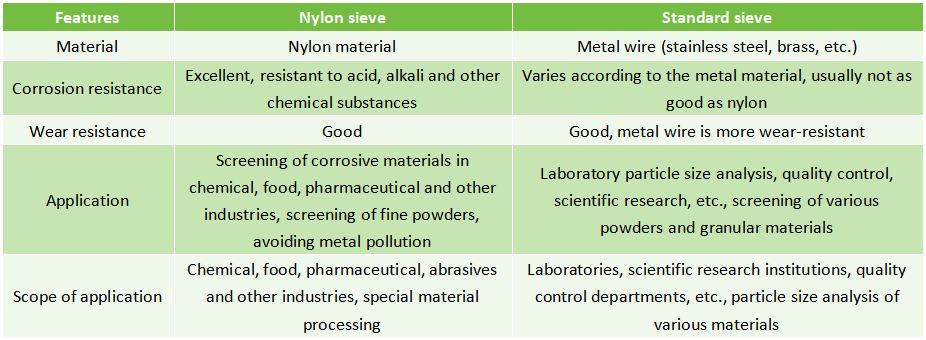

What is the difference between a nylon sieve shaker and sieve test?

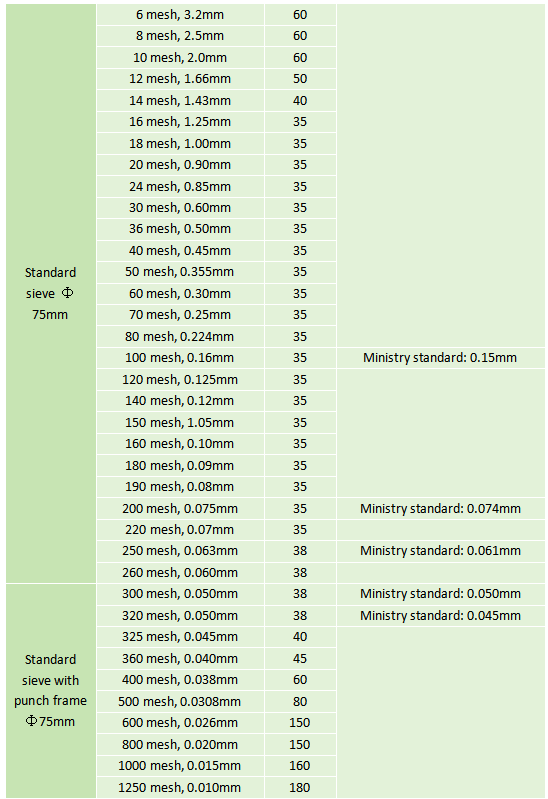

Product Screen size Product Screen size Product Screen size

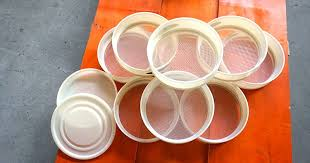

Nylon Sieve Shaker price

The price of nylon sieve shaker is affected by many factors. The diameter, mesh number (aperture size) and number of layers of the screen will directly affect the price. The material of the screen, such as the quality of nylon, will also affect the price. You can contact us through email, official website and product interface to inquire about the latest product quotation.

Nylon Sieve Shaker manufacturer

Nylon sieve shaker has broad application prospects in multiple industrial fields. It can efficiently process various granular materials and meet the requirements of different industries for screening accuracy, purity and production efficiency.
