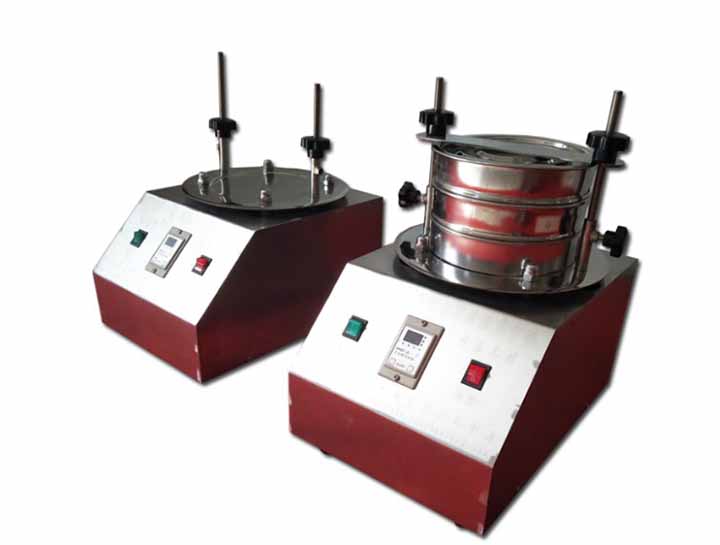

Sonic Sieve Shaker for Pharmaceutical Granules

Tuesday March-24 2026  15:46:51

In pharmaceutical manufacturing, the Sonic Sieve Shaker for Pharmaceutical Granules is responsible for grading and controlling particle size. Sieving separates particles of different sizes, facilitating subsequent tableting, filling, or mixing. While conventional equipment typically handles powders from 50 micrometers to 9 millimeters, it struggles with extremely fine powders—20 micrometers or even 5 micrometers, finer than a human hair—which tend to clump together or adhere to the sieve due to electrostatic attraction. In such cases, traditional shaking methods are ineffective, requiring the use of sound waves to help dislodge the particles.

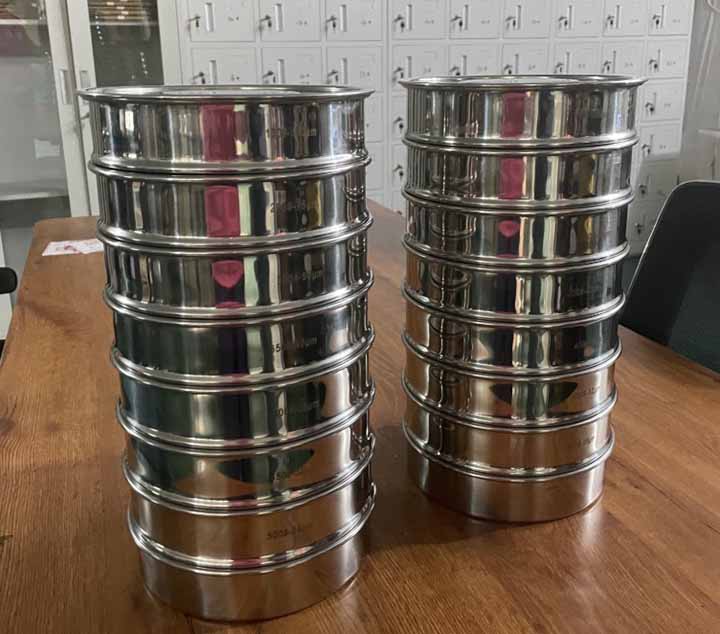

This stainless steel device can sieve particles ranging from 3 μm to 5.6 mm. For different needs, users can choose a 3-inch model for small sample analysis and an 8-inch model for routine drug production testing. The device supports multi-layer stacking; 1 to 3 layers can handle simple grading, while 5 to 7 layers can handle complex multi-stage particle size analysis tasks.

How the Sonic Sieve Shaker for Pharmaceutical Granules Works

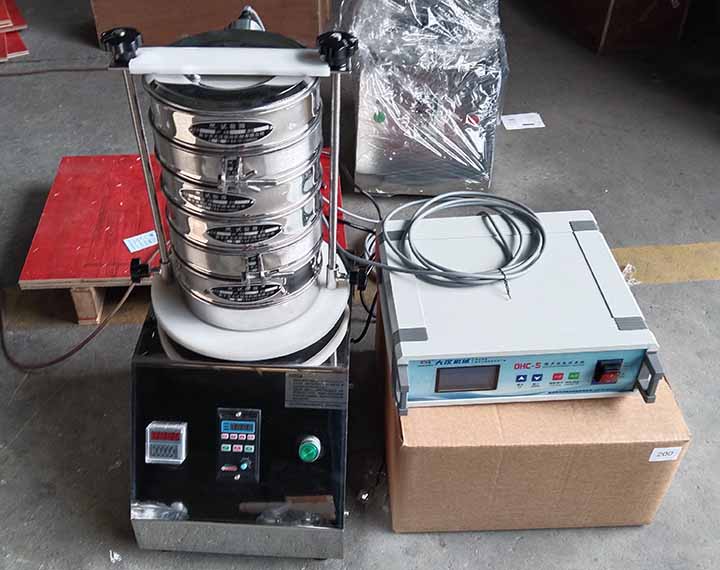

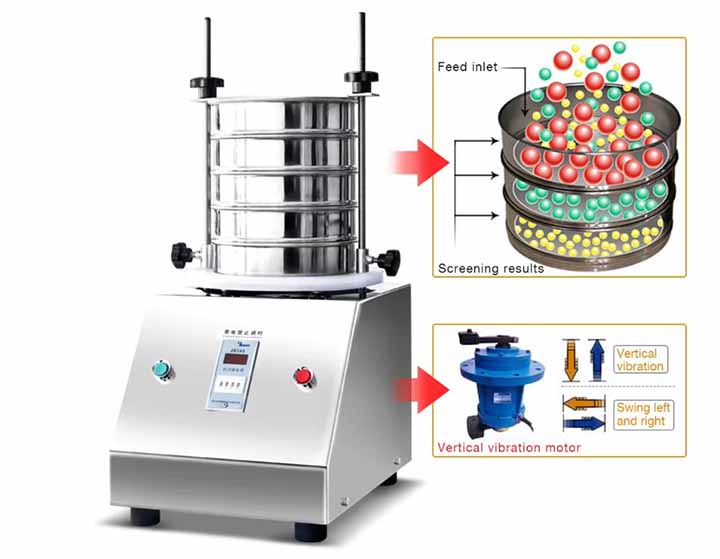

The Sonic Sieve Shaker for Pharmaceutical Granules operates similarly to a speaker. It incorporates a sound wave generator inside the machine that produces vibrations. When the machine starts, it generates high-frequency air waves, commonly known as sound waves. These high-frequency sound waves cause the screen to vibrate slightly, causing the particles to bounce and disperse. Compared to ordinary mechanical vibration, this method is gentler, reducing the likelihood of particle breakage. Simultaneously, airflow coordinates with the sound waves, carrying lighter particles through the screen openings, while larger drug particles remain on the screen surface, thus completing the classification.

Benefits of the Sonic Sieve Shaker for Pharmaceutical Granules

Using the Sonic Sieve Shaker for Pharmaceutical Granules solves problems such as clogging, drug particle damage, and excessive noise in pharmaceutical manufacturing.

Reduced Clogging: Because the sound waves cause the powder to suspend and bounce, the small openings of the screen are less likely to be clogged, saving time on frequent downtime for cleaning.

Protecting Drug Particles: It does not use heavy impact balls or strong mechanical shaking; its gentler action maintains the original shape of the drug powder particles and prevents the breakage of fragile particles.

Reduced processing time: When processing extremely fine drug powders, its throughput is much faster than manual sieving, completing a sample test in just a few minutes.

Quiet operation: Compared to older machines with loud metallic clanging, sonic operation is quieter, improving the laboratory working environment.

Small footprint: Its compact size allows it to be placed in a corner of the lab bench.

Specific applications of Sonic Sieve Shaker for Pharmaceutical Granules

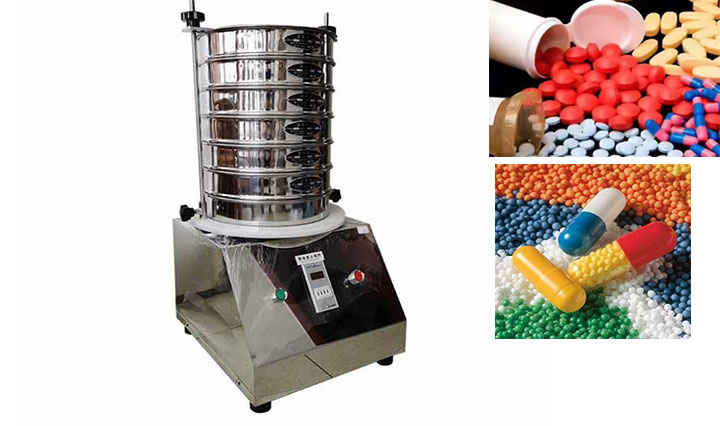

Sonic Sieve Shaker for Pharmaceutical Granules is commonly used in multiple stages of the pharmaceutical process. In new drug development, researchers use it to analyze the particle distribution of new formulations and check the proportion of powders of different sizes; in the incoming inspection stage, pharmaceutical companies use it to check whether incoming raw material powders meet size requirements; during grinding monitoring, timed sampling and sieving are used to observe whether the mill has ground the drug to the target fineness; in addition, it can also perform separation tasks for some active ingredients that are prone to static electricity and sticking.

Sonic Sieve Shaker for Pharmaceutical Granules Buying Guide

When purchasing a Sonic Sieve Shaker for Pharmaceutical Granules, we recommend paying attention to the following intuitive parameters. First, determine the micrometer size of your finest powder. Then, check the minimum mesh size supported by the machine. Pharmaceutical equipment must be made of stainless steel with a smooth, polished surface, free of dead corners, and easy to clean with water. Ideally, choose a model with a countdown timer; the machine will automatically stop after the set time, eliminating the need for constant monitoring. Different weights of powder require different vibration forces; choose a machine with adjustable sound wave intensity. Inquire about the availability and ease of replacement of sieves; models that can be disassembled without tools are more labor-saving.

Sonic Sieve Shaker for Pharmaceutical Granules Frequently Asked Questions

Q: How many layers of sieves can this machine hold?

A: Typically, 1 to 7 layers can be stacked. This means you can separate a batch of powder into 2-8 different fineness grades at once.

Q: Will the sound waves change the chemical properties of the drug?

A: No. Sound waves only physically vibrate the air; they do not generate high heat or react with the drug, and the efficacy remains unchanged.

Q: Why is my sieving speed slower?

A: Please check if the sieve is damaged or if the powder is damp. Damp powder becomes heavier and stickier, making it difficult for sound waves to separate it.

The Sonic Sieve Shaker for Pharmaceutical Granules solves the problem of sieving fine pharmaceutical powders through air oscillation. It not only reduces sieve clogging but also protects expensive drug ingredients from damage. For pharmaceutical companies or research institutions prioritizing output quality, this is a practical tool that can improve work speed. Whether in the production or R&D stages, this equipment helps users better control particle quality, thereby improving drug consistency and reliability.
