Test sieves for reliable sieve analysis

Saturday November-01 2025  08:43:39

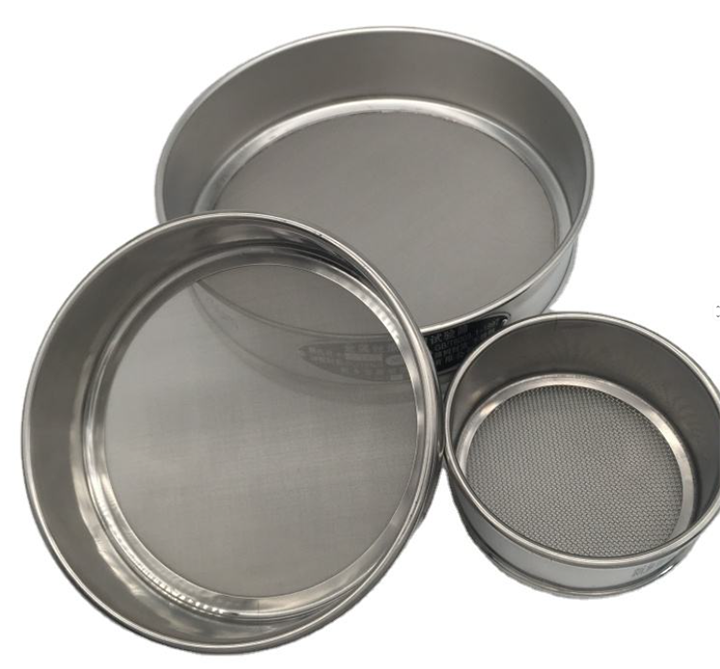

Test sieves for reliable sieve analysis are tools used in laboratories to determine particle size distribution. Test sieves are typically made of durable materials such as stainless steel or brass. Their core component is a precision-woven wire mesh mounted on a rigid frame to ensure accurate pore size and repeatable analysis. The entire sieve assembly, from the mesh to the frame, must strictly adhere to international standards such as ISO 3310-1 or ASTM E11 to guarantee consistency and reliability of sieve testing procedures and results across different laboratories.

Key Features of Test Sieves for Reliable Sieve Analysis

Test sieves for reliable sieve analysis are characterized by precise sieve specifications, high-quality manufacturing materials and processes, and standardized structure and dimensions:

The wire diameter and mesh size of the sieve must strictly conform to national or international standards; the sieve is typically made of stainless steel, which resists material abrasion and chemical corrosion, extending its service life; the sieve and sieve frame should be firmly bonded together by welding, brazing, or special adhesives to prevent detachment or gaps during sieving, which could lead to material leakage and errors; test sieves should form a complete series, capable of being stacked from top to bottom to form a sieve set; the diameter (e.g., 200mm, 75mm) and height of the sieve frame conform to standards to ensure compatibility with common vibrating sieve machines and guarantee sufficient space for material movement during sieving.

Performing Reliable Sieve Analysis

When performing sieve analysis, prepare a sample and then select Test sieves for reliable sieve analysis, such as a mechanical or electromagnetic vibrating sieve. Choose either dry or wet sieve depending on your needs. The following are the steps for dry sieve analysis for your reference:

Sample Preparation: Extract a representative sample from a large batch of material. Dry the sample thoroughly at 105°C to constant weight, then accurately weigh the total weight. This step aims to remove moisture and prevent fine particles from clumping together.

Standard Sieve Analysis: Stack a set of standard sieves in descending order of aperture size. Pour the dried sample into the top sieve, cover it, and secure it to the vibrating sieve machine. Set a sufficient time for sieving until all particle sizes are completely separated.

Weighing and Recording: After sieving, carefully separate the sieves one by one. Use a brush to collect all the material remaining on each sieve tray and weigh the material of each particle size, while recording the mass of the finest particle in the bottom tray.

Data Verification: Add the mass of all particle sizes to the mass of the chassis, and compare the sum with the total weight of the sample before sieving. The mass loss between the two should not exceed 0.5% of the total weight; this is a key indicator for determining the validity of the test results.

Calculation and Analysis: Using the total weight before sieving as a baseline, calculate the cumulative percentage of material passing through each sieve. Finally, plot the particle size distribution curve to clearly show the overall particle size composition of the material, providing a reliable basis for subsequent applications.

Types of Test Sieves

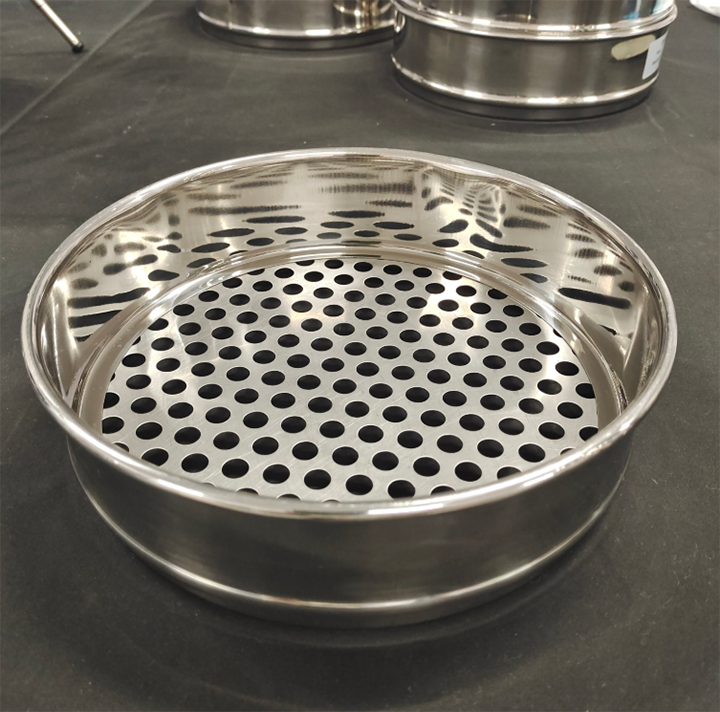

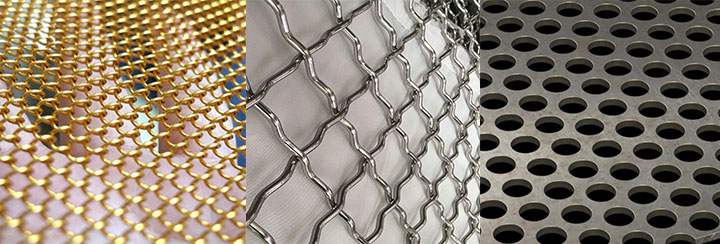

In test sieves for reliable sieve analysis, four common types of equipment each have their own function and characteristics: Woven wire mesh sieves are made of interwoven metal wires, with a wide range of aperture sizes, suitable for general sieving of most particulate materials; perforated plate sieves use metal plates with precisely stamped round or square holes, featuring a robust and wear-resistant structure, particularly suitable for handling large particles, high-load, or abrasive materials; electroformed sieves are formed through an electroplating process, with a seamless, integral sieve structure, precise hole shape, sharp edges, and good dimensional consistency, designed specifically for demanding precision analysis and ultra-fine powders; airflow sieves utilize airflow to move powder within a closed sieve, effectively solving the problems of fine powder agglomeration and static electricity clogging, suitable for lightweight, viscous, or ultrafine powders that are difficult to sieve using traditional methods.

Test Sieves for Reliable Sieve Analysis Suppliers

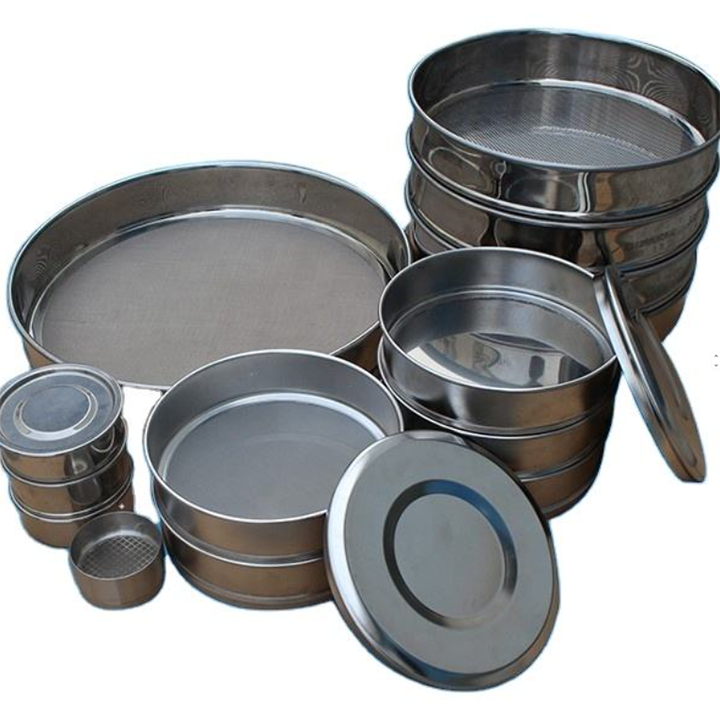

Our factory manufactures sieve frames in various sizes, including 3 inches, 8 inches, and 12 inches, according to the test samples. The sieve frame is available in half-height or full-height configurations. For customers with large amounts of material, full-height is preferable to prevent spillage. The equipment is available with either round or square holes. As a source manufacturer of screening equipment, we offer transparent pricing, making us a popular choice for many businesses.

Test sieves for reliable sieve analysis. Key components include the precision sieve as the separation core, the sieve frame providing the standard framework, the sieve bottom for collecting the final fine material, and the sieve cover to prevent dust loss. Sieves are mainly categorized into woven wire mesh and perforated plate sieves. Key factors affecting reliability include the precision of the sieve itself, wear and clogging during use, and proper operating procedures. To ensure final accuracy, the entire system should be calibrated and verified periodically using standard samples, and the sieve should be carefully inspected and cleaned before and after each use.
