Standard Soil Sieve detects and filters various soils, and is widely used in laboratory analysis and monitoring of samples.
Price: $20.00-$68.00/Set Chat Now
Diameter: 200/300/400mm
Aperture: 0.074mm-60mm
Number of layers: 1-8 layers
Applicable materials: The product is suitable for: silt, sand, cement, coarse sand, soil, stones, etc.
Features: The frame is round and smooth, without burrs, and does not hurt hands, and the screen frame is integrally formed to be strong and durable.
Selection points:
Screen: ① Wire braided mesh: 0.074mm-1.0mm; ② Metal perforated plate screen: round holes above 2.0mm
Screen frame: ①Chrome-plated punch frame: high hardness and more wear-resistant; ②Stainless steel material: anti-corrosion and heat insulation, easy to clean
Quantity(sets) | 1-2 | >2 |
Delivery time(days) | 5 | To be negotiated |
Standard Soil Sieve, also known as Soil Sieve, is a sieve used for soil screening and testing. It is mainly used to separate the residual plants from the soil. After the experiment, the soil can be sunk, and the residual plants can be left on it. The results of the soil detection are much more accurate. Use a soil sieve to remove the residual plants in the soil, which is convenient for measuring various data content in the soil in the later work, and the residual plants in the soil can be extracted separately, which can be easily calculated. According to the proportion of plant residues in the soil, the greenness of the soil can be judged from the aspect of organic fertilizer.
The Standard Soil Sieve sieve frame and screen are made of 304 stainless steel, which can prevent rusting due to high water content in the soil. The sieve size is 0.075, 0.1, 0.125, 0.25, 0.5, 0.63, 1, 2, 5, 10mm .

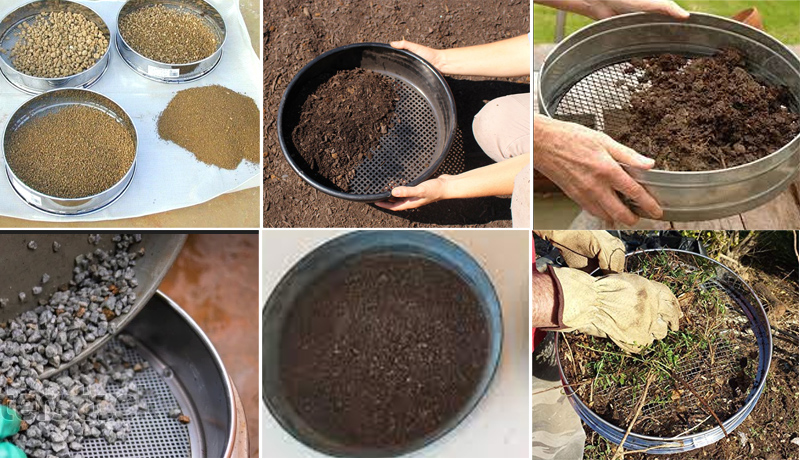

Laboratory Soil Tests
Soil Particle Analysis
Soil Grading Sampling
Standard Soil Sieve can separate the soil according to the thickness. It is suitable for soil nitrogen content determination, soil potassium content determination, soil carbonate determination and soil sieving in various experiments. It can be applied to various laboratories for grading and screening samples, analysis, detection, etc.
Department of Agriculture Soil Texture Grade (If you need a more accurate definition of your soil's texture grade, you should take a disturbed soil sample to a testing lab to quantify particle size.):
Common name of soil (general texture) |
Sand | Sludge | Clay | Texture |
Sandy soil (coarse texture) |
86-100 | 0-14 | 0-10 | Sand |
70-86 | 0-30 | 0-15 | Fertile sand | |
Loam (moderately rough texture) |
50-70 | 0-50 | 0-20 | Sandy loam |
Loam (medium texture) |
23-52 | 28-50 | 7-27 | Loam |
20-50 | 74-88 | 0-27 | Silty Loam | |
0-20 | 88-100 | 0-12 | Silt | |
Loam (moderate texture) |
20-45 | 15-52 | 27-40 | Clay loam |
45-80 | 0-28 | 20-35 | Sandy clay loam | |
0-20 | 40-73 | 27-40 | Silty Clay Loam | |
Clay (fine texture) |
45-65 | 0-20 | 35-55 | Sandy clay |
0-20 | 40-60 | 40-60 | Silty clay |
Sieve concrete mortar: sieve hole diameter is 5.00mm metal square hole sieve, 100mmStandard Soil Sieve is required.
Laboratory soil sieving: 200mm in diameter, 5 cm in height Aperture: 10/7/5/3/1/0.5/0.25 mm.
Standard Soil Sieve diameter 200mm high 5 cm hole diameter 10/7/5/3/1/0.5/0.25 mm.
To test the sieve and test the sieve of the soil Aperture: 0.85mm 1.18mm 2.0mm 2.80mm 3.35mm 4.0mm 4.75mm 8.0mm.
Sieve soil particles: Standard Soil Sieve with a sieve size of 2 microns.
Square hole gravel screen: 0.075/0.15/0.3/0.6/1.18/2.36/4.75/9.5 bottom cover, 9 pieces in total;
Round hole gravel screen: 0.08/0.16/0.315/0.63/1.25/2.5/5/10/bottom cover, 9 pieces in total;
Square hole gravel sieve: 2.36/4.75/9.5/16/19/26.5/31.5/37.5/53/63/75/90/bottom cover, 13 pieces in total;
Round hole stone sieve: 2.5/5/10/16/20/25/31.5/40/50/63/80/100/bottom cover, 13 pieces in total;
Round hole soil sieve: 0.074/0.25/0.5/1/2/5/10/20/40/60/bottom cover, 11 pieces in total;
Asphalt aggregate screen: 0.075/0.15/0.3/0.6/1.18/2.36/4.75/9.5/13.2/16/19/26.5/31.5/37.5/53/bottom cover, 16 pieces in total.
Note: 0.074mm-1mm is a stainless steel screen, and 2mm or more is a galvanized punching plate
Standard Soil Sieve commonly used aperture: 0.074mm, 0.25mm, 0.5mm, 1mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 13mm, 20mm, 40mm, 60mm, other specifications Contact Dahan customer service.
Standard Soil Sieve from 4.75 mm to 75 microns for soil analysis
diameter (mm) | height (mm) | frame | Bottom of the sieve | Sieve hole | Hole Size |
300 | 50 | iron | Stainless steel | square/round | custom made |
300 | 50 | Stainless steel | Stainless steel | square/round | custom made |
diameter (mm) | height (mm) | frame | Bottom of the sieve | Sieve hole | Hole Size |
200 | 50 | iron | Stainless steel | square/round | custom made |
200 | 50 | Stainless steel | Stainless steel | square/round | custom made |
200 | 50 | brass | brass | square/round | ≤4mm |
200 | 50 | brass | Stainless steel | square/round | custom made |
1. It can quickly and effectively screen coarse particles from dry soil samples for preliminary analysis on site.
2. Standard Soil Sieve apertures are 00, 80, 60, 40, 20, 10, 5, 2mm; fine sieves are generally square holes, and the equivalent apertures are 2.0, 1.0, 0.5, 0.25, 0.10, 0.075mm, and the screening is accurate.
3. 1mm can sieve dust in the soil, 3mm can sieve 1-3mm soil particles, and 6mm can sieve 6mm medium soil particles.
4. National standard 304 stainless steel mesh surface, high temperature resistance, non-magnetic, not easy to rust.
5. It adopts one-time stamping forming, the screen frame is flat, the finish is high, and the sieve assembly interchangeability is good.
6. The sieve is tight and flat, no wire picking or material jamming. The double-layer thickened screen frame is durable and not easy to deform. The screen mesh and the screen frame are fixed by soldering, which will not loosen and last longer.
7. Equipped with a fully automatic laboratory vibrating screen, it is more efficient and safer.
Sieve bottom+sieve mesh+sieve frame
Sieve bottom: stainless steel wire mesh, galvanized wire mesh, nylon wire mesh, chrome plate, stainless steel plate, galvanized plate, copper plate, wood plate, aluminum alloy plate, plastic plate, etc.
Screen frame: stainless steel plate, low carbon steel plate, wooden frame
Sieve bottom shape: square hole, round hole, rhombus hole
Features: wear-resistant, easy to use, suitable for grading and screening
Screen frame: double-layer chrome-plated punching frame
Bottom net: 304 stainless steel net (0.074mm--1.0mm)
Standard Soil Sieve: Diameter 300mm Mesh range 0.074mm-60mm
10 sieves plus a set of bottom covers, respectively: 0.074mm, 0.25mm, 0.5mm, 1mm, 2mm, 5mm, 10mm, 20mm, 40mm, 60mm.
Or galvanized punching plate (above 2.0mm)
Soil particle size (mm) | <2mm | <10mm | <20mm | <40mm | >40mm |
Sampling mass (g) | 100-300g | 300-900g | 1000-2000g | 2000-4000g | Above 4000g |
1. From the air-dried loose soil samples, the soil was obtained by quartering.
2. Pass the sample through a 2mm sieve, and weigh the soil mass above and below the sieve, respectively. Take the soil on the 2mm sieve and pour it into the upper sieve of the stacked coarse sieve in sequence, and pour the soil under the 2mm sieve into the upper sieve of the fine sieve stacked in sequence (analytical sieves are stacked from top to bottom from large to small) . Fully sieve and analyze with a shaker until the diameter of the soil particles on each sieve is larger than the sieve aperture, generally shake the sieve for 15-30 minutes;
3. Starting from the large-diameter sieve, remove each sieve in sequence, and weigh the soil left on each sieve to an accuracy of 0.1g. The difference between the sum of the soil mass on each sieve and the total soil mass shall not be greater than 1% of the total soil mass;
4. Calculate the particle group content and cumulative content, draw the gradation curve, get the characteristic particle size, analyze the gradation of the soil, and name it according to the specification.
1. Coarse screens commonly used in geotechnical tests are generally round holes with apertures of 100, 80, 60, 40, 20, 10, 5, and 2mm; fine screens are generally square holes with equivalent apertures of 2.0, 1.0, 0.5, and 0.25 , 0.10, 0.075mm. There are some differences in the pore size classification of analytical sieves used in different countries and different departments;
2. Analytical balance, analytical balance requires two types according to the weighing range and accuracy: (1) weighing 10kg, sensing capacity 1g, (2) weighing 1000g, sensing capacity 0.1g;
3. Shaking machine, the specification stipulates that the shaking machine can shake in the horizontal direction and slap in the vertical direction. Shaking frequency is 100~200 times/minute, and tapping frequency is 50~70 times/minute;
Soil Project | standard | Soil Sieve Requirements | Calibration result |
moisture | Determination of soil dry matter and moisture Gravimetric method HJ 613-2011 |
Aperture 2mm | 2.07mm |
organic carbon | Determination of soil organic carbon Potassium Dichromate Oxidation-Spectrophotometry HJ 615-2011 |
Aperture 2mm | 1.93mm |
Aperture 2mm | 0.262mm | ||
total chromium | Determination of total chromium in soil flame atomic absorption spectrophotometry HJ491-2009 |
Aperture 0.149mm | 0.153mm |
copper | Determination of soil quality copper and zinc flame atomic absorption spectrophotometry GB/T17138-1997 |
Aperture 2mm | 2.07mm |
Zinc | Aperture 0.149mm | 0.153mm | |
lead | Determination of lead and cadmium in soil quality graphite furnace atomic absorption spectrophotometry GB/T 17141-1997 Determination of soil quality lead and cadmium KI-MIBK extraction flame atomic absorption spectrophotometry GB/T17141-1997 |
Aperture 2mm | 2.07mm |
cadmium | Aperture 0.149mm | 0.153mm |
